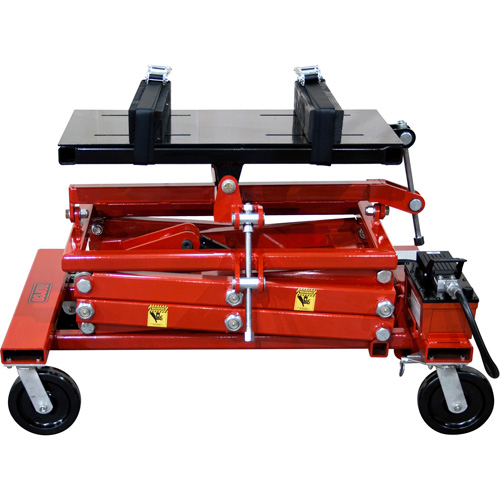

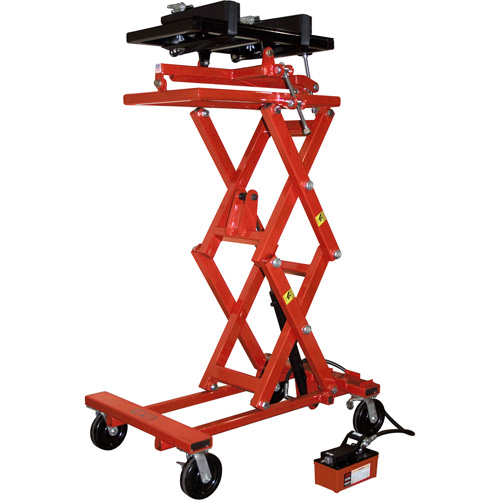

Powertrain Lift & Table, 19" L x 36" W, 2500 lbs. Capacity

Model: FLU753

Mfr. No.:Manufacturer Model No.: 72850A

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Specifications
Description

Platform Dimensions: 19" L x 36" W
Capacity: 2500 lbs.
Raised Height: 78"
Lowered Height: 31"
Handle Height: 35"
Length: 50"
Width: 33"
Caster Wheel Diameter: 8"
Country Of Origin: United States

This lift/table handles powertrain components like engines and their transmissions, engines with transaxle assemblies, rear ends and large electric vehicle batteries
Serves as a work table where components can be lowered to a convenient work height for repairs
An air/hydraulic foot pump includes a metered valve for safe lowering of the load
Safety overload system in the air/hydraulic pump prevents jack from being used beyond the load-limiting standard
Five foot extension hose with quick disconnect fittings stores in the lift base
The foot pump can be removed from its holder and hydraulic hose quickly and easily extended by 5’ using the extension hose
This provides hands free operation of the pump anywhere around the lift’s perimeter
Scissors lift design provides easy 360˚ access to any component
Two heavy duty ratchet tie-downs are included to safely secure the load on the lift table
Table top height from 31” to 77-3/4” (with wood saddles) or 27.5” to 74-1/4” (base plate only)
Four 8” diameter swivel caster wheels for easy maneuverability
Rear wheels can be locked to prevent the lift from rolling
